OEM Carp Fishing Reel Manufacturer for Long-Range Freshwater Programs
This reel series is positioned for buyers that need a practical carp spinning reel with larger line capacity and a heavier drag system rather than a compact general-purpose freshwater reel.

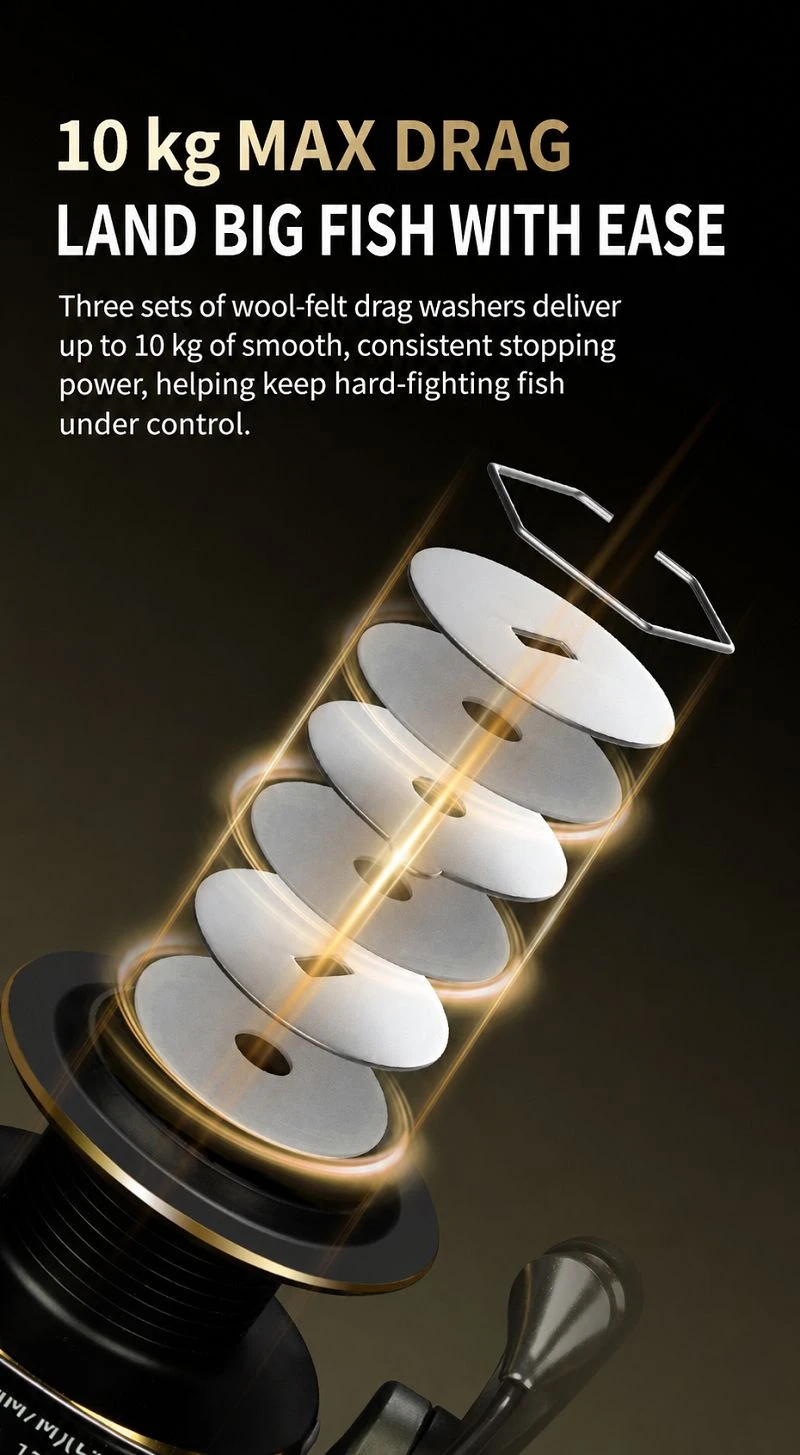

The drag system uses multiple felt drag washers and provides up to 10 kg / 22.05 lb of braking force. Combined with the 5.2:1 gear ratio, the reel maintains a balance between retrieve speed and cranking control for longer casts and heavier freshwater rigs.

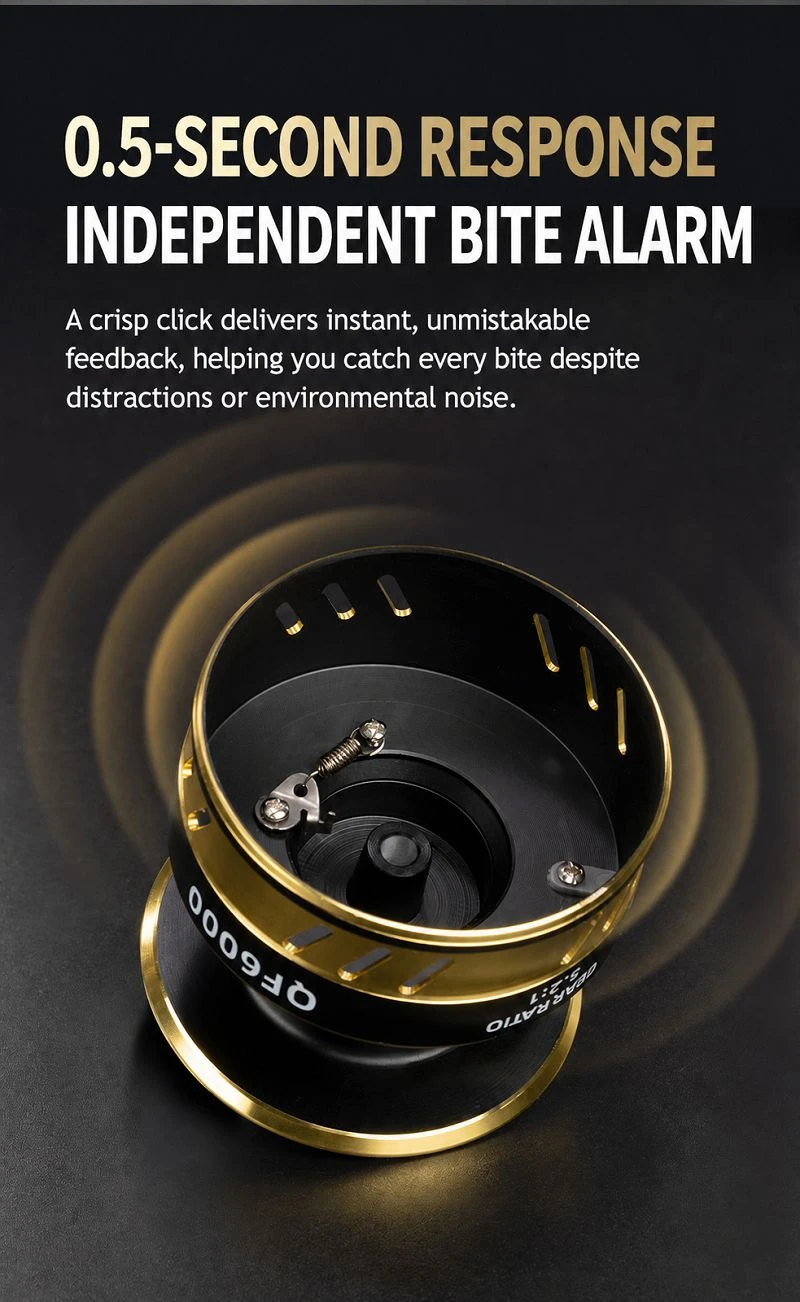

A key difference is the integrated independent bite alarm system. The alarm reacts quickly to line movement and provides an audible indication when the rig is being pulled, giving the series an additional selling point for carp-oriented tackle programs.

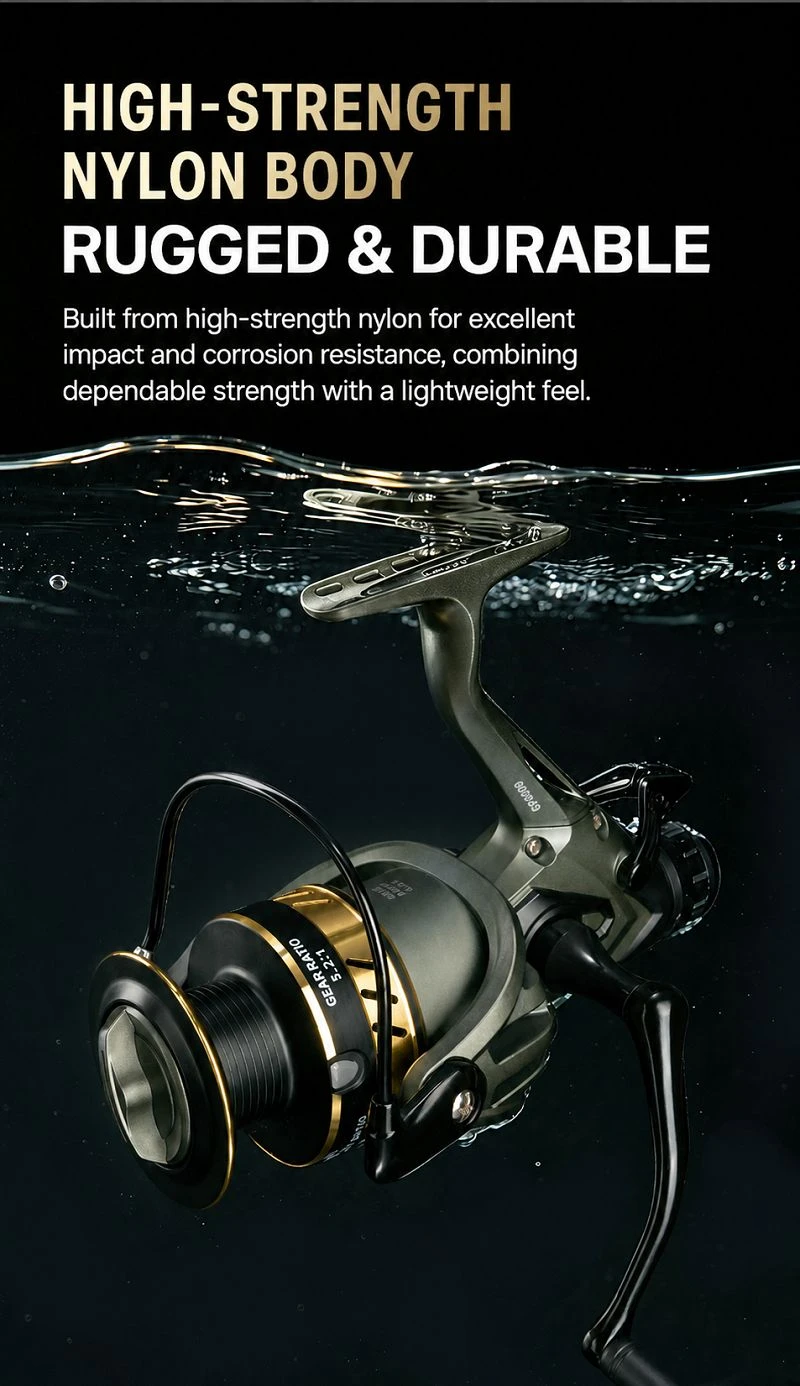

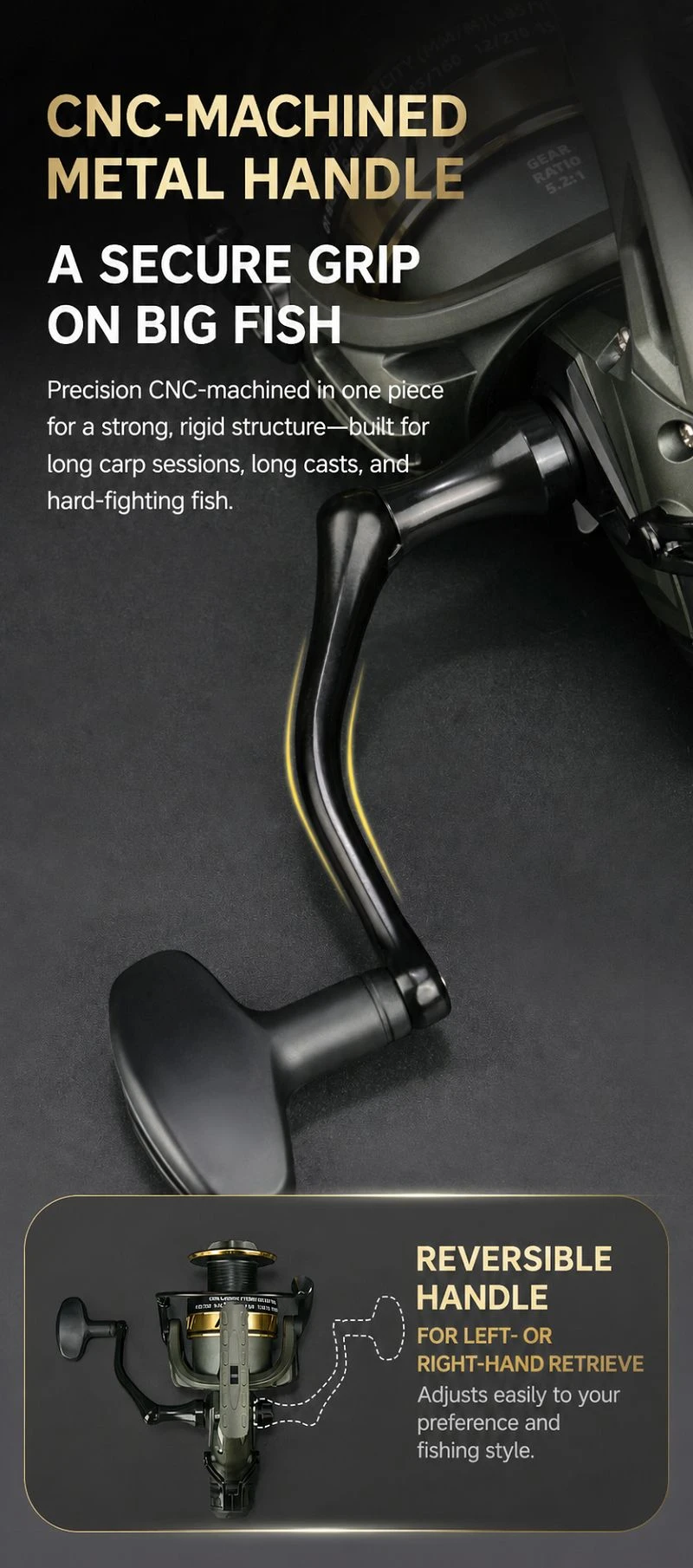

The body uses high-strength nylon construction to balance structural strength and overall weight, while the CNC-machined metal handle provides a firmer connection during retrieval. The handle can also be installed on either side to support different market requirements.

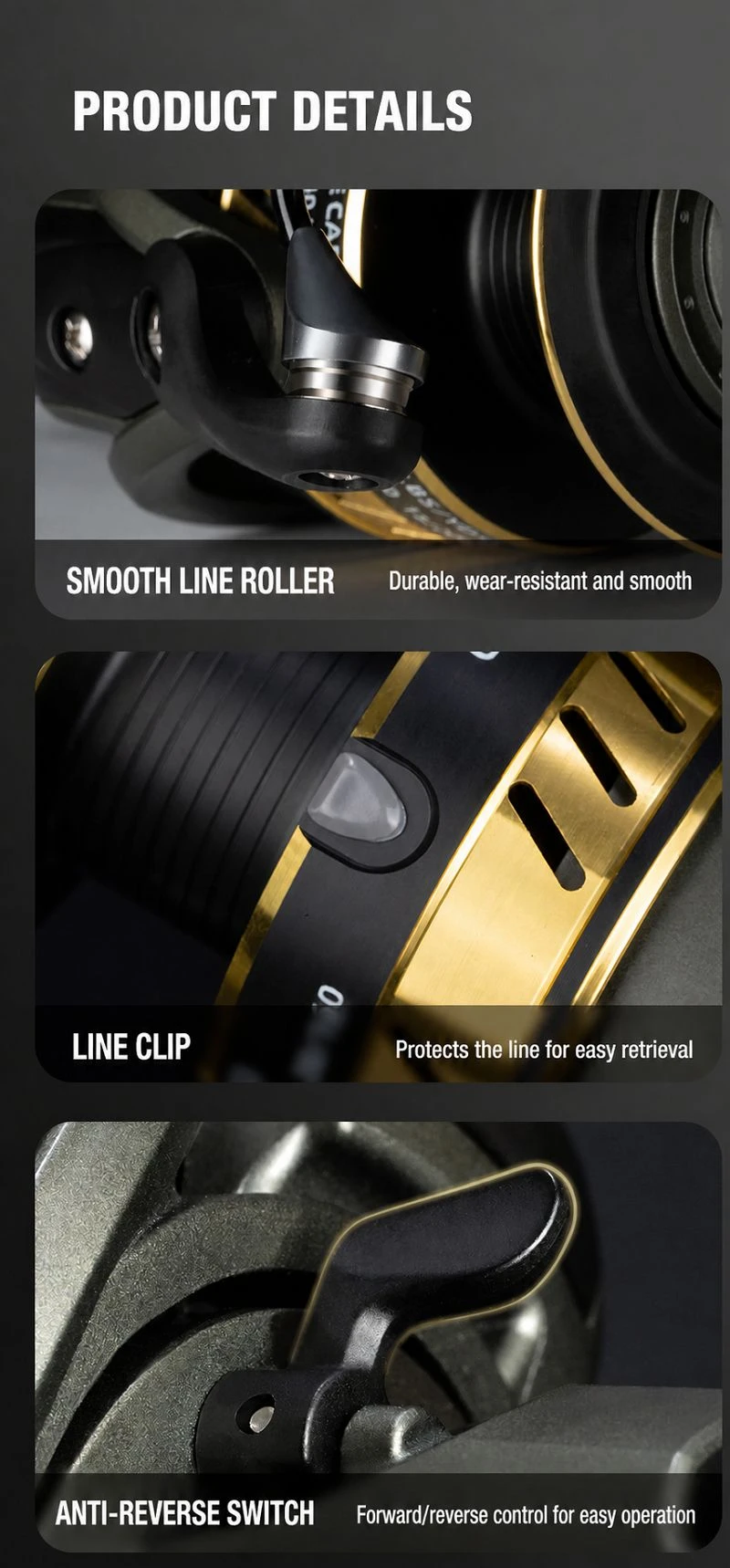

Additional details such as the anti-reverse switch, line clip, reinforced line roller, and large spool structure make the series suitable for coordinated 3000–6000 private-label reel ranges.
Product Specifications
|
Size |
Weight |
Gear Ratio |
Max Drag |
Line Capacity |
|
QF3000 |
308 g / 10.86 oz |
5.2:1 |
10 kg / 22.05 lb |
0.20 mm / 340 m; 0.25 mm / 210 m; 0.30 mm / 150 m |
|
QF4000 |
312 g / 11.01 oz |
5.2:1 |
10 kg / 22.05 lb |
0.25 mm / 300 m; 0.30 mm / 200 m; 0.35 mm / 150 m |
|
QF5000 |
426 g / 15.03 oz |
5.2:1 |
10 kg / 22.05 lb |
0.30 mm / 210 m; 0.40 mm / 160 m; 0.45 mm / 120 m |
|

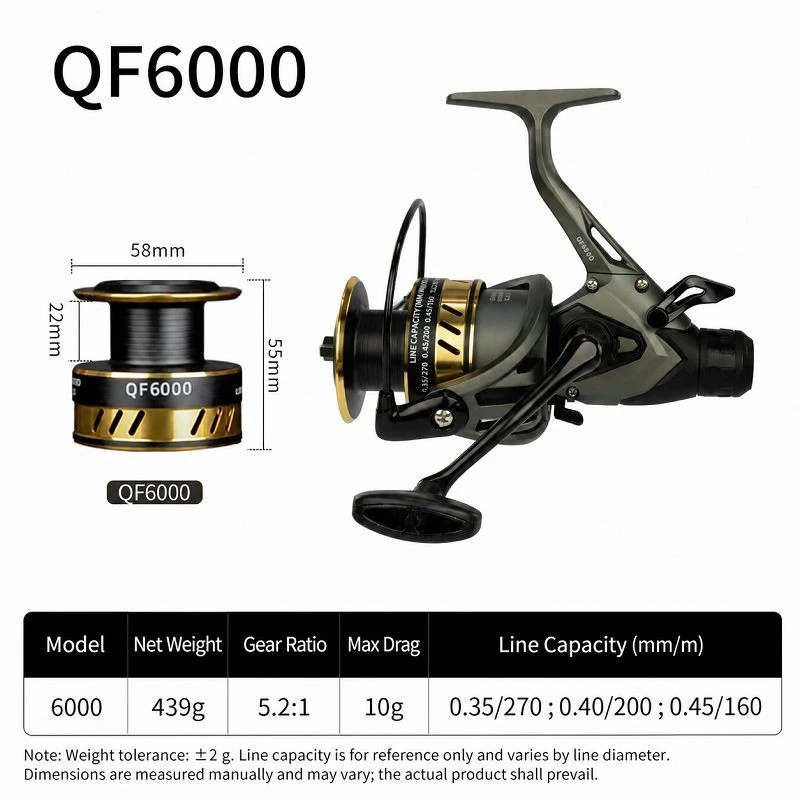

QF6000 |
439 g / 15.49 oz |
5.2:1 |
10 kg / 22.05 lb |
0.35 mm / 270 m; 0.40 mm / 200 m; 0.45 mm / 160 m |
Applications
The large spool capacity, 10 kg drag system, and long-range casting orientation make this reel suitable for freshwater tackle programs where heavier rigs and longer line requirements are common.
Recommended Applications
- Carp fishing
- Long-range freshwater casting
- Bank fishing
- Lake and reservoir fishing
- Heavy freshwater rigs
- Paylake tackle programs
Target Species
This reel series is primarily suited to freshwater product ranges targeting carp and other larger species requiring higher line capacity and stronger drag performance.
Recommended Target Species
- Common Carp
- Mirror Carp
- Grass Carp
- Buffalo Fish
OEM Customization
This Carp Fishing Reel can be customized for fishing brands, importers, and wholesalers developing private-label reel programs.
- Custom body colors
- Custom spool colors
- Custom decorative trim
- Custom logo printing
- Custom spool marking
- Custom handle configuration
- Custom bearing specification
- Custom packaging
- Custom labels and barcodes
- Coordinated 3000–6000 reel series
Why Choose WH Fishing
WH Fishing provides OEM & ODM fishing tackle development, production management, quality inspection, and export support for brands, importers, and wholesalers.
For this reel series, the 3000–6000 size range, 10 kg / 22.05 lb drag, 5.2:1 gearing, large line capacity, CNC handle, and independent bite alarm system provide a practical platform for developing carp-focused freshwater reel collections.
FAQ
1. What sizes are available for this Carp Fishing Reel?
The series is available in 3000, 4000, 5000, and 6000 sizes.
2. What is the maximum drag?
All four sizes provide up to 10 kg / 22.05 lb of drag force.
3. What gear ratio does this reel use?
The complete series uses a 5.2:1 gear ratio.
4. Does this reel include a bite alarm?
Yes. The reel incorporates an independent audible bite alarm system that responds to line movement.
5. Can the reel be customized for private-label orders?
Yes. Body colors, spool details, logos, bearing specifications, packaging, labels, and other OEM elements can be customized.
