Precision CNC Fly Reel for Multi-Size OEM Programs
This reel series is built around CNC machining rather than conventional die-cast construction. The one-piece metal structure is precision-machined to create the reel frame, spool openings, support sections, and fit interfaces with tighter dimensional control.
The ported design removes material from non-critical areas while retaining support around the spool, frame, reel foot, and drag assembly. This allows the series to maintain an all-metal construction while keeping weights between 120 g / 4.23 oz and 175 g / 6.17 oz, depending on reel size.
For OEM and private-label buyers, the four-size platform also provides a consistent visual and mechanical family covering lighter trout reels through larger 9/10 WT fly-fishing setups.
Product Specifications
|
Model / Size |
Diameter |
Bearings |
Weight |
Gear Ratio |
Line Capacity |
|
3/4 WT |
70 mm / 2.76 in |
2+1 |
120 g / 4.23 oz |
1:1 |
WF3–4F + 20 lb / 40 yd backing |
|
5/6 WT |
80 mm / 3.15 in |
2+1 |
140 g / 4.94 oz |
1:1 |
WF5–6F + 25 lb / 50 yd backing |
|
7/8 WT |
90 mm / 3.54 in |
2+1 |
165 g / 5.82 oz |
1:1 |
WF7–8F + 25 lb / 80 yd backing |
|
9/10 WT |
100 mm / 3.94 in |
2+1 |
175 g / 6.17 oz |
1:1 |
WF9–10F + 30 lb / 120 yd backing |
CNC-Machined Structure and Ported Weight Reduction

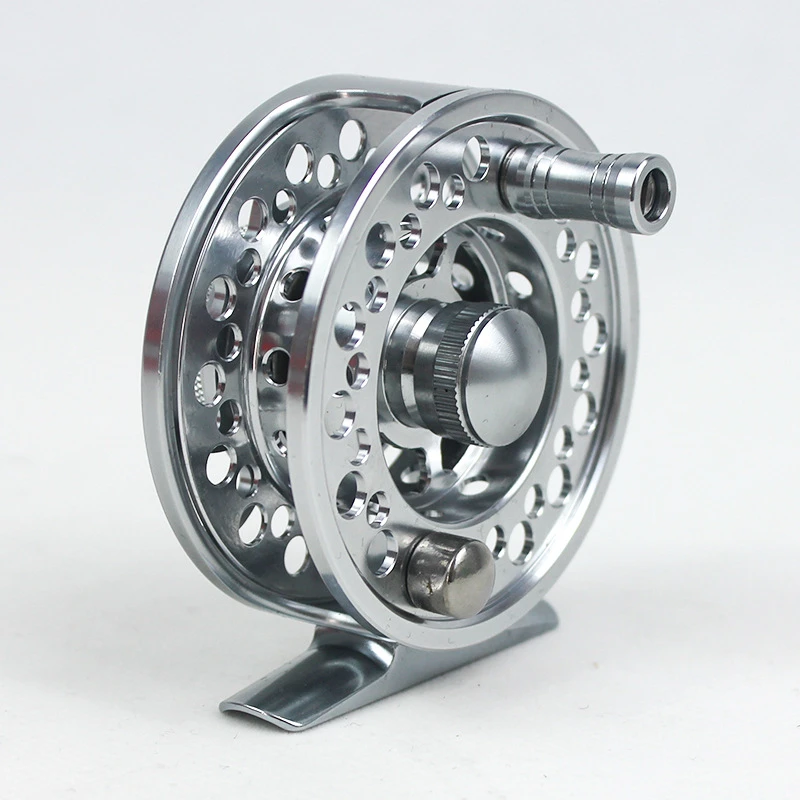

The reel frame and spool use extensive machined openings rather than a solid metal profile. This design removes unnecessary material while preserving support around the areas that carry load during retrieval and drag operation.
That balance is important in a CNC fly reel: machining is not only used to create a more refined surface and tighter component fit, but also to control where material remains and where it can be removed.
The result is a rigid metal reel platform with size-specific weights ranging from 120 g / 4.23 oz in the 3/4 model to 175 g / 6.17 oz in the 9/10 model.
Fly Line Size and Backing Capacity Guide
The four reel sizes are matched to different WF fly-line classes and backing requirements, giving buyers a clearer product-family structure than a single universal reel.
3/4 WT

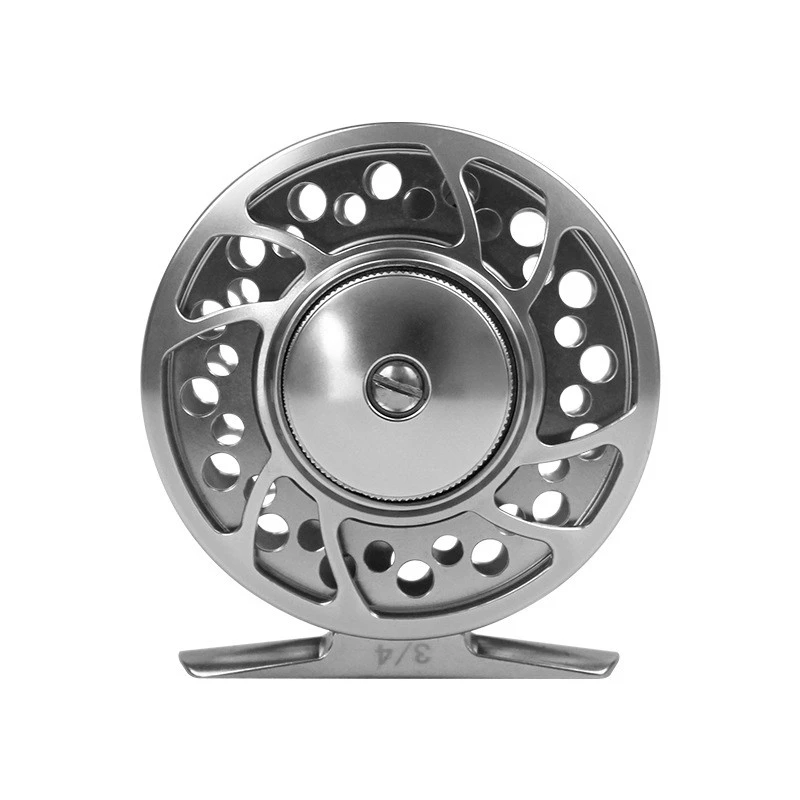

The smallest 70 mm / 2.76 in model is designed around WF3–4F line with 20 lb / 40 yd backing. Its 120 g / 4.23 oz weight makes it the lightest configuration in the range.
5/6 WT
The 80 mm / 3.15 in model supports WF5–6F with 25 lb / 50 yd backing, making it suitable for general freshwater fly-fishing programs.
7/8 WT
The 90 mm / 3.54 in configuration increases backing capacity to 25 lb / 80 yd and supports WF7–8F, providing a larger platform for streamer, bass, and heavier freshwater setups.
9/10 WT
The largest 100 mm / 3.94 in model is matched to WF9–10F with 30 lb / 120 yd backing, giving buyers a higher-capacity option for larger fly-line systems and stronger target species.
Front Adjustable Drag for Controlled Line Pressure

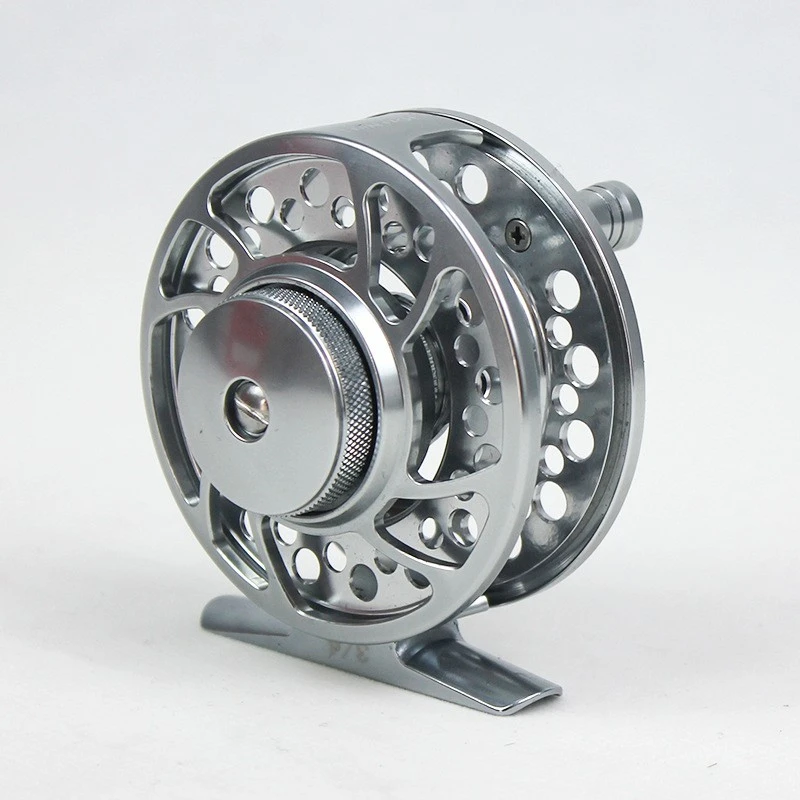

A large front drag adjustment knob allows resistance to be changed directly from the reel face.
This layout keeps the drag control accessible while maintaining a compact reel profile. The knurled outer surface also provides additional grip when making adjustments.
Because the available product data does not specify the internal drag material or maximum drag rating, this reel is best described as using an adjustable front drag system rather than assigning an unverified carbon, cork, sealed, or disc-drag specification.
1:1 Direct Retrieve and 2+1 Bearing System
All four sizes use a 1:1 direct retrieve. One complete handle rotation corresponds directly with spool rotation, providing a straightforward mechanical relationship between handle input and line recovery.
The series also uses a 2+1 bearing configuration, supporting spool and handle movement across the size range.
Rather than positioning bearing count as the primary performance feature, the reel is better differentiated by the combination of CNC structure, multi-size line compatibility, drag adjustment, and direct retrieve architecture.
Left and Right Retrieve Conversion
The reel supports left- and right-hand retrieve conversion, allowing the same reel platform to be configured for different market preferences.
For wholesale and private-label programs, this can simplify SKU planning because one reel design can serve buyers requiring either retrieve orientation without developing a separate reel body.
CNC Fly Reel Applications by Size
The broad 3/4 to 9/10 WT size range allows this CNC reel family to cover several freshwater fly-fishing categories rather than being limited to one target species.
Recommended Applications
- Trout fly fishing
- River and stream fly fishing
- General freshwater fly fishing
- Bass fly fishing
- Streamer fishing
- Steelhead-oriented fly setups
- Heavier freshwater fly-line applications
Target Species
Species positioning should follow the reel size rather than treating all four models as interchangeable.
Recommended Target Species
- Trout
- Grayling
- Panfish
- Bass
- Steelhead
- Salmon for appropriate larger-line setups
OEM Customization
This CNC fly reel series can be developed for OEM and private-label programs with customization focused on branding, appearance, size assortment, and packaging.
Available options include:
- Brand logo and reel marking

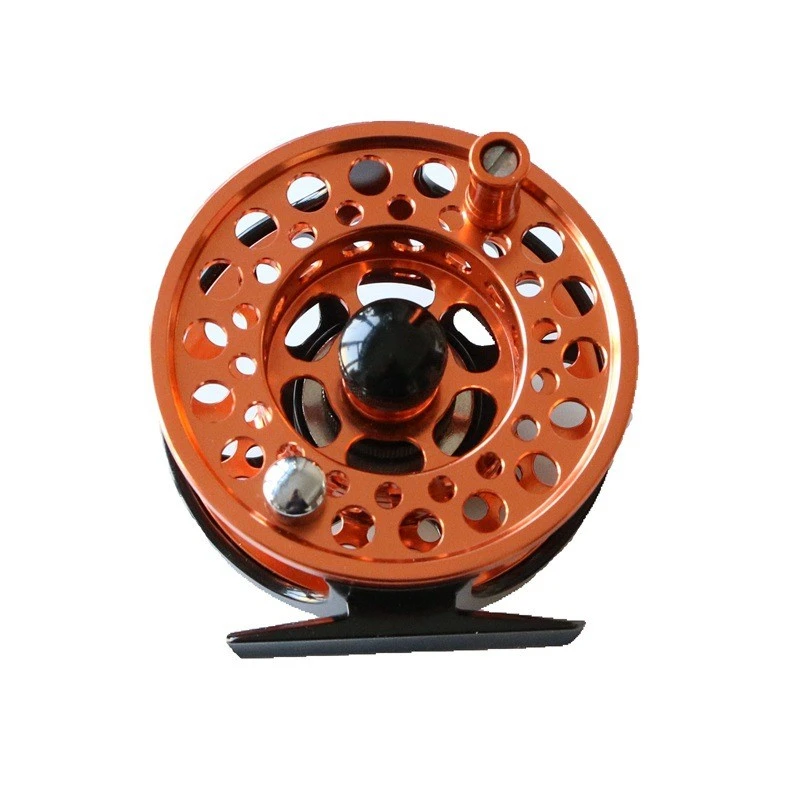

- Custom reel colors
- Surface finish options
- Size selection from 3/4 to 9/10 WT
- Handle configuration
- Left/right retrieve setup
- Packaging design
- Model labeling
- Barcode and private-label information
- Multi-size product-family planning
The four-size platform makes it possible to build one coordinated CNC fly reel family for multiple freshwater price points and line classes.
Why Choose WH Fishing
WH Fishing supports fishing brands, importers, and wholesalers with reel selection, OEM configuration, branding, packaging development, and bulk production.
For CNC fly reel projects, this platform provides a stronger technical base than ordinary cast-reel designs through CNC-machined metal construction, ported frame and spool geometry, four WT classes, defined WF line and backing capacities, left/right retrieve conversion, and adjustable front drag control.
This gives buyers a flexible foundation for developing a private-label fly reel series instead of relying on a single-size product.
FAQ
1. Is this a fully CNC-machined fly reel?
Yes. The reel is produced using integrated CNC machining for the all-metal structure, rather than being positioned as a conventional die-cast fly reel.
2. What fly-line sizes are available?
The series covers 3/4, 5/6, 7/8, and 9/10 WT, with corresponding WF fly-line and backing capacities for each model.
3. Does the reel support left- and right-hand retrieve?
Yes. The retrieve direction can be converted between left and right hand.
4. What type of retrieve system does the reel use?
All four models use a 1:1 direct retrieve.
5. What is the largest reel in the series?
The largest model is the 9/10 WT, with a 100 mm / 3.94 in diameter, 175 g / 6.17 oz weight, and capacity for WF9–10F + 30 lb / 120 yd backing.
